3 Axle 40ft Side Wall Trailer
Send Inquiry
Chat Now
Product Details
The 3 axle 40ft side wall trailer is a premier multi-purpose hauling solution engineered by Chengda Group to provide maximum cargo flexibility and structural stability for global logistics operations. This sidewall semi trailer combines a high-tensile steel chassis with reinforced, removable side panels, ensuring that freight operators receive a robust and versatile side wall trailer that meets rigorous ISO, CCC, and BV certifications while maintaining the competitive pricing and technical integrity of a factory-direct supply chain.

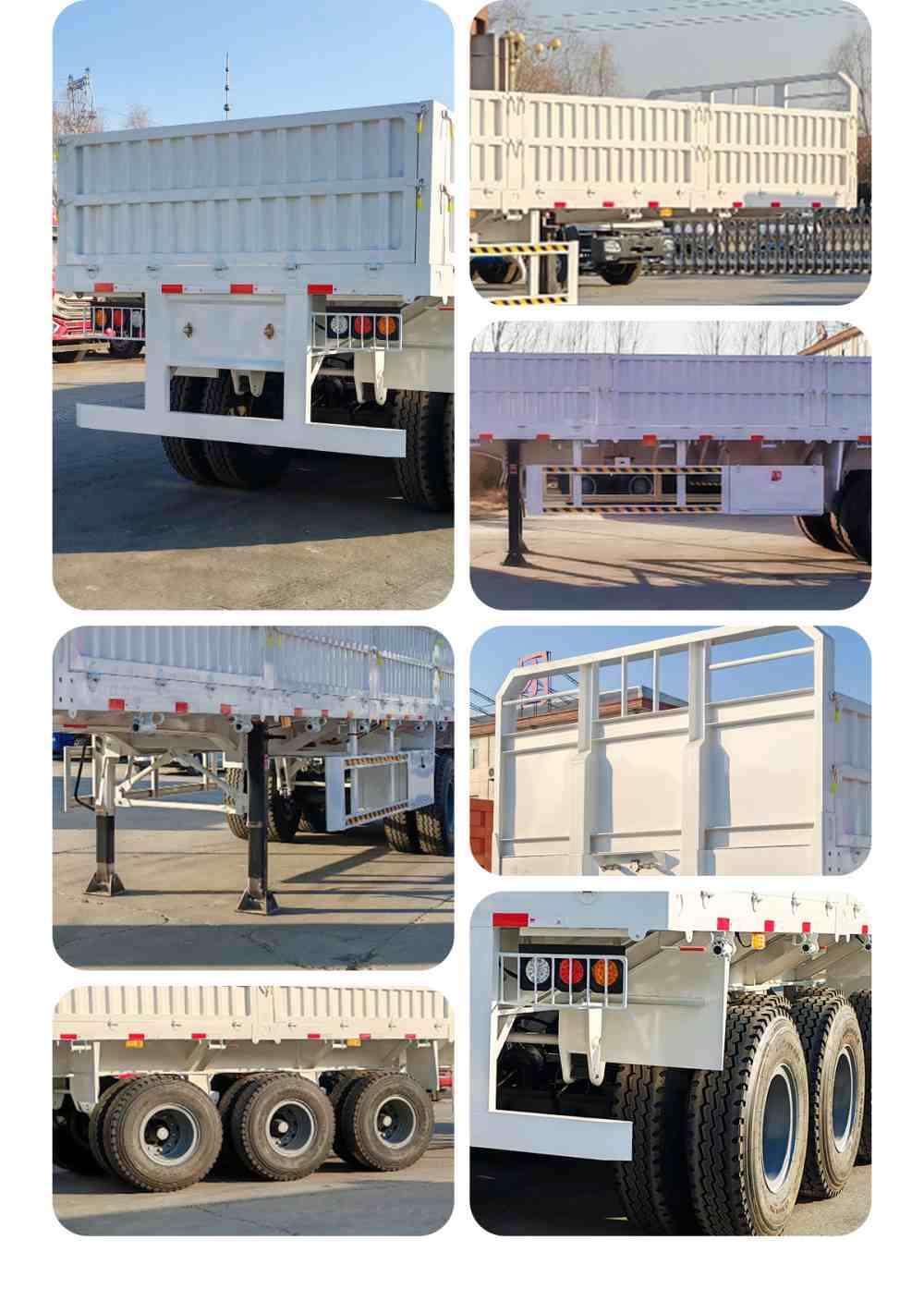

Features
1. Heavy-Duty Main Beam: Fabricated from Q345B manganese steel using automated submerged arc welding, ensuring the sidewall trailer remains rigid under extreme heavy-load conditions.
2. Modular Side Wall Design: Features detachable side panels with high-quality locking mechanisms, allowing for rapid conversion between a secure cargo enclosure and a flatbed configuration.
3. Premium Axle & Suspension: Equipped with world-renowned FUWA or BPW 13T/16T axles and a heavy-duty mechanical leaf spring suspension, optimized for stability across varied and rugged terrains.
4. Anti-Corrosive Surface Protection: Every unit undergoes a comprehensive grit-blasting process followed by a dual-layer polyurethane paint finish to resist oxidation and harsh environmental exposure.
5. Global Safety Compliance: Integrated with a dual-line pneumatic braking system and optional WABCO ABS, providing reliable stopping power for high-speed highway transit.
Specifications
| Parameter | Detailed Specifications |
|---|---|
| Payload Capacity | 40,000 kg – 60,000 kg |
| Overall Dimensions | 12,500mm × 2,500mm × 2,350mm (Customizable) |
| Sidewall Height | 600mm / 800mm / 1,000mm (Optional) |
| Axle Type | 3 Axles (FUWA / BPW / L1 Brand) |
| Main Beam | 500mm height; Top 14mm, Middle 8mm, Bottom 16mm |
| Tires | 12R22.5 Tubeless Tires (12 units + 1 spare) |
| Landing Gear | JOST / FUWA 28T Two-speed Manual |
Application

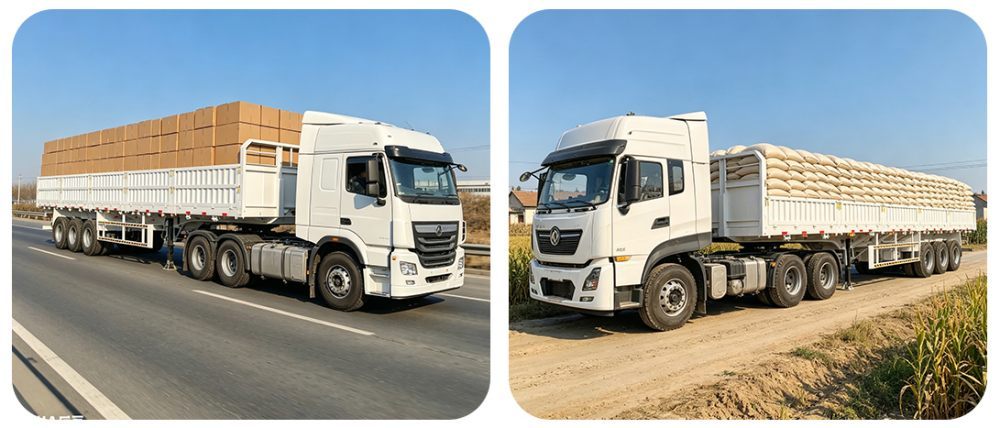

The 3 axle 40ft side wall trailer is exceptionally effective in agricultural logistics, such as hauling grain, bagged produce, and livestock. It is also the preferred equipment for construction material distribution, including the transport of cement, steel pipes, and bricks. Its unique design makes it ideal for general freight forwarding, providing a secure enclosure for bulk items while maintaining the ability to carry ISO containers via integrated twist locks.

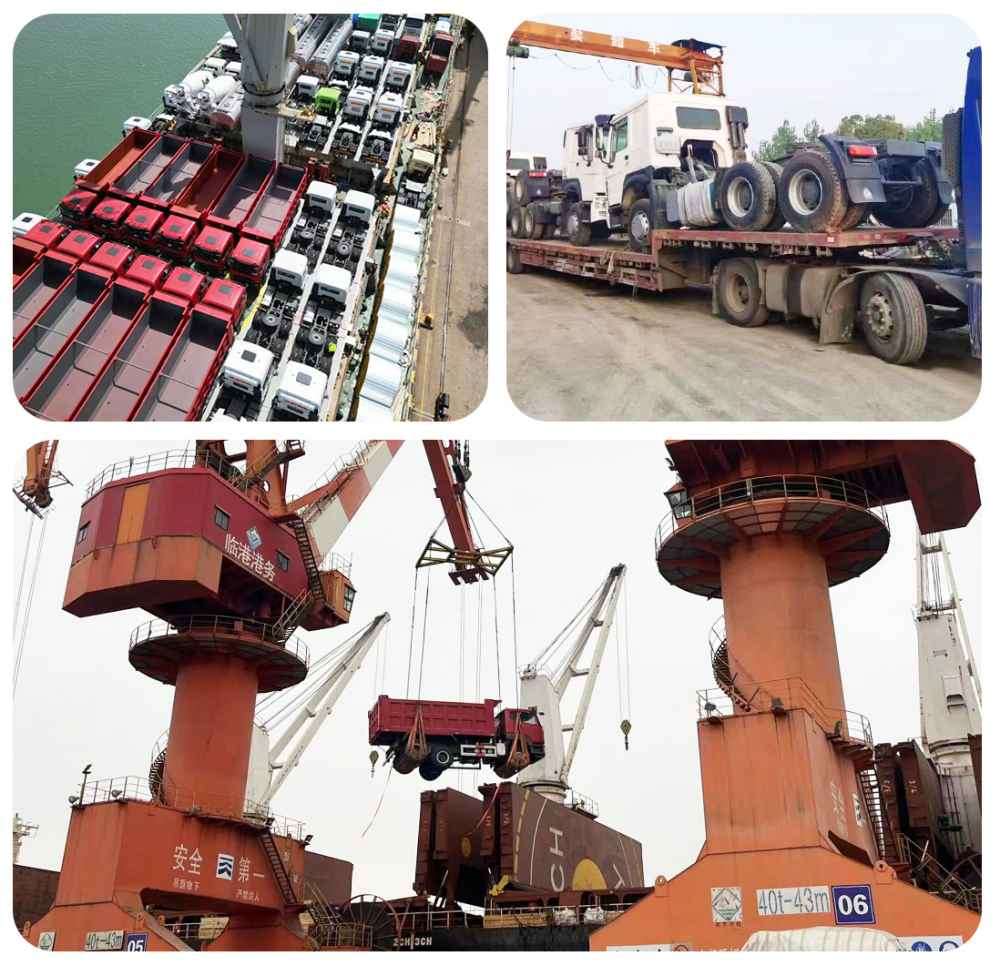

Packaging and Shipping
To ensure your investment arrives in factory-perfect condition, we provide professional packaging and shipping services. Every sidewall semi trailer receives a comprehensive anti-corrosion wax polishing before departure. We typically arrange cost-effective transit via Bulk Carrier or RORO vessels (usually in stacks of three to reduce ocean freight), with secure lashing protocols to safeguard your cargo during maritime transit.
