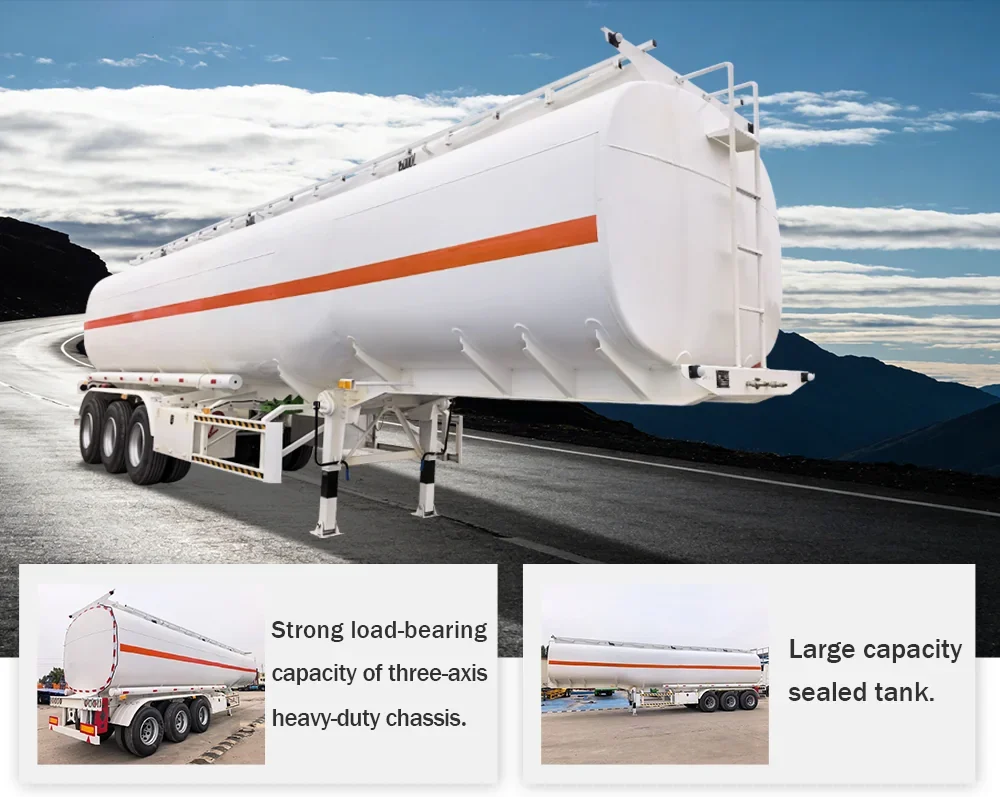

3 Axle Fuel Tanker Semi Trailer
Send Inquiry
Product Details
3 Axle Fuel Tanker Semi Trailer — 38,000–50,000 Liters, Lightweight & Safe 100% brand new fuel tanker semi trailer for diesel, gasoline, kerosene, and fuel oil transport. 3 axles with super single wide tires and aluminum rims (FUWA / BPW / SAF optional) significantly reduce tare weight for higher legal liquid payload. High-tensile Q345B carbon steel or lightweight 5083 aluminum alloy tank body built with automated submerged arc welding. 1–6 independent compartments with European-standard explosion-proof manhole covers, emergency subsea shut-off valves, anti-static grounding strips, and internal anti-wave baffles. Available with dual 3" or 4" discharge valves, air or leaf spring suspension, and customized to your regional fuel distribution, refueling station supply, or crude & refined oil transport requirements. |
Want a factory-direct quote? Tell us your volume and compartment requirements.
Product Gallery
Product Video
Need a custom configuration? Tell us your requirements.
Technical Specifications
| Specification Parameter | Technical Details |
|---|---|
| Tank Body | |
| Product Model | 3 Axle Fuel Tanker Semi Trailer |
| Overall Dimensions (L × W × H) | 11,500–12,500 × 2,500 × 3,800 mm |
| Tank Capacity | 38,000 – 50,000 Liters (Customizable) |
| Tank Material & Thickness | Q345B Carbon Steel (5/6mm) or 5083 Aluminum Alloy |
| Compartments | 1 – 6 Independent Chambers (Customizable) |
| Chassis & Running Gear | |
| Axle Brand & Count | 3 Axles × 13T / 16T (FUWA / BPW / SAF) |
| Tire Setup | Super Single (385/65R22.5 / 425/65R22.5) + Aluminum Rims |
| Suspension System | Heavy-Duty Air Suspension / Mechanical Leaf Spring |
| Loading & Safety | |
| Discharge System | Dual 3" / 4" Valves with Lateral Hose Carrier Tubes |
| Safety Assemblies | Explosion-Proof Manhole, Subsea Emergency Valve, Anti-Static Strip |
See why fuel distributors in 30+ countries trust our tanker trailers.
Core Advantages & Key Features
High-Strength Tank Structure Q345B steel or 5083 aluminum alloy with automated submerged arc welding — complete leak protection and exceptional fatigue strength. | Super Single Tire & Lightweight Design Super single wide tires with aluminum rims cut tare weight, reduce fuel consumption, and increase legal liquid payload. |
Anti-Wave Baffle System Internal anti-wave baffles reduce liquid oscillation in transit — enhanced driving stability and shorter braking distances. | Comprehensive Safety & Anti-Spill System Explosion-proof manhole covers, emergency subsea shut-off valves, anti-static strips, and foldable top safety handrails. |
Multi-Compartment Flexibility 1–6 independent chambers with separate manholes and bottom valves — transport multiple fuel grades safely in a single journey. |
Have questions about compartments or regulations in your country? We're here to help.

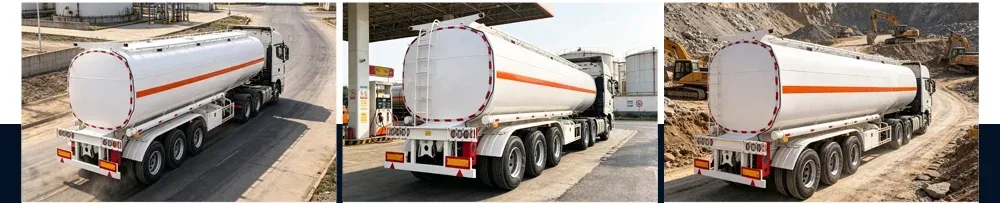

Application Fields & Industry Use Cases
Commercial Fuel Station Supply Delivers refined diesel, gasoline, and kerosene safely from petroleum depots directly to regional gas stations. | Industrial & Mining Site Refueling Transports bulk fuel to mining hubs, remote power plants, and large construction projects. |
Intercity Fuel Logistics Hauls large volumes of liquid fuel across long-distance highways with high transport efficiency per trip. | Multi-Grade Liquid Transport Multi-compartment design delivers different fuel grades or compatible liquid chemicals in one trip. |

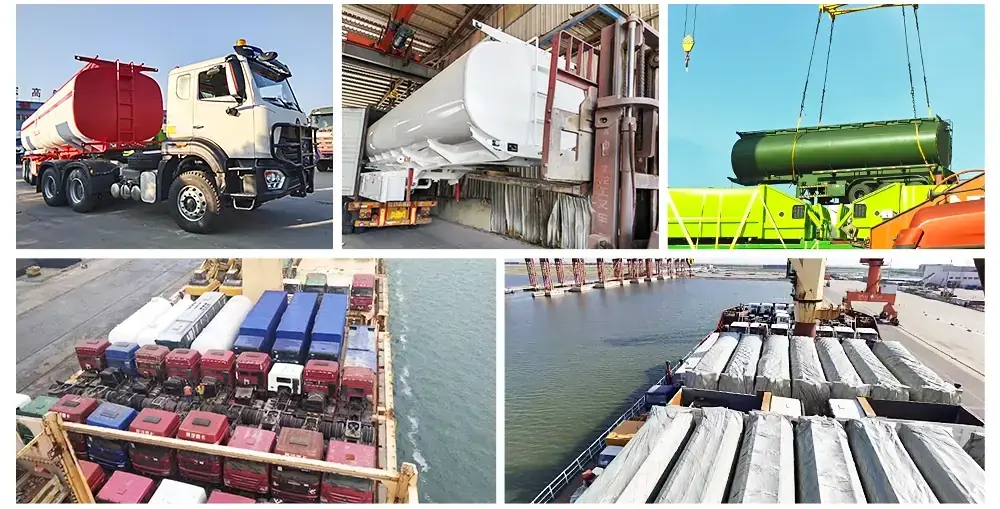

Shipping & Global Delivery
Flexible Ocean Freight Options Flat Rack Container, Ro-Ro Ship, or Bulk Vessel — we select the most economical and safe method for your destination port. | Marine-Grade Protection Heavy-duty anti-rust wax applied to the entire unit before loading — your tanker arrives in factory condition. |
About Chengda
Professional Semi-Trailer Manufacturer We design and export fuel tanker, flatbed, lowbed, and specialty semi-trailers — full-cycle service from engineering drawings to doorstep delivery. | Trusted by Fuel Distributors in 80+ Countries International buyers regularly visit our factory to verify welding quality, tank construction, and export documentation firsthand. |
Frequently Asked Questions
Q1: What are the advantages of super single wide tires? They significantly reduce the trailer's unladen weight and rolling resistance — better fuel economy and higher legal payload capacity for liquid cargo. |
Q2: Can the tank be divided into multiple compartments? Yes. We offer 2, 3, 4, or 6 chamber configurations — each compartment has its own independent manhole cover and bottom discharge valve. |
Q3: What safety mechanisms prevent fuel leakage in accidents? Bottom emergency shut-off subsea valves automatically close during impact or pipe failure, plus explosion-proof manhole covers on every compartment. |
Q4: How do you ship this semi trailer overseas? Via Flat Rack Container, Ro-Ro Ship, or Bulk Vessel. The entire unit is coated with heavy-duty anti-rust wax prior to loading. |

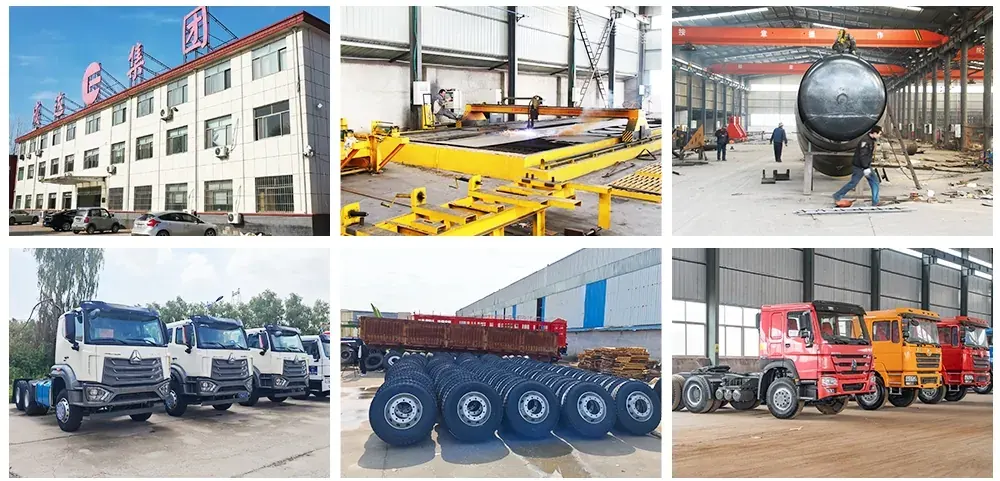

Our Factory
