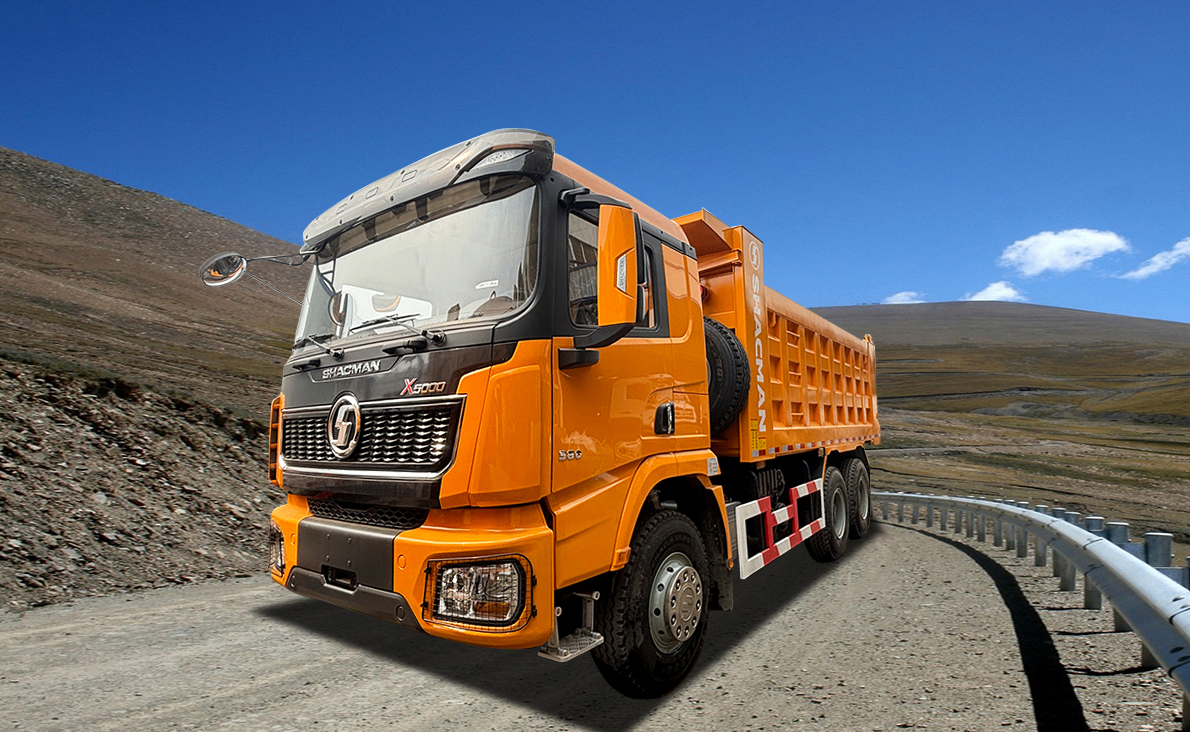

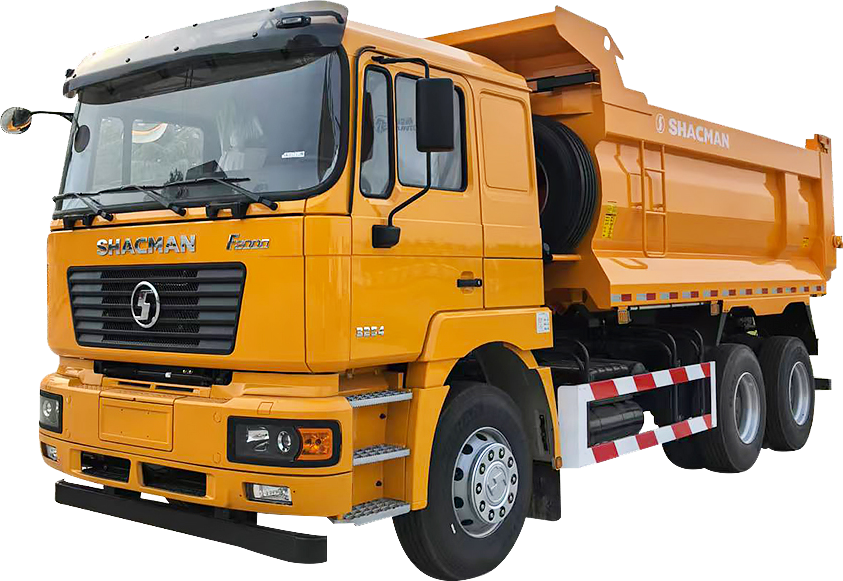

The Shacman 6x4 Dump Truck is a reliable heavy-duty tipper specially designed for bulk material transportation in construction, mining, infrastructure and municipal engineering. Equipped with Weichai/Cummins engine (300–420HP) and stable hydraulic lifting system, it features strong power, efficient unloading and fuel-saving performance. Its reinforced double-layer frame, sturdy dump body and advanced safety configurations ensure excellent load capacity and durability, with a comfortable cab and flexible LHD/RHD options to meet the needs of global customers.
Specification Data (规格数据)
Item (项目) | Specification (规格) |
Driving Type (驱动形式) | 6×4 (fixed) |
Engine (发动机) | Weichai/Cummins, 300–420HP, Euro Ⅱ–Euro Ⅵ compliant (WP10/WD615 optional) |
Transmission (变速箱) | Fast 9/10/12-speed manual transmission (9JS119 optional) |
Axle (车桥) | Front: 7.5T/9.5T; Rear: 13T/16T Hande/MAN axle (single-stage/dual-stage reduction) |
Wheelbase (轴距) | 3225+1350mm / 3400+1400mm (varies by model) |
Tire Specification (轮胎规格) | 11.00-20 / 12.00R20 / 12R22.5 |
Dump Body (货箱) | High-strength steel, 4.8–5.6m×2.3m×1.3–1.5m, rear-tipping type (optional closed top) |
Cab (驾驶室) | European-style cab with A/C, electric window, air suspension seat, optional sleeper |
Lifting System (举升系统) | Front hydraulic lifting system, safe and efficient unloading |
Steering System (转向系统) | Hydraulic power steering, flexible and easy to operate |

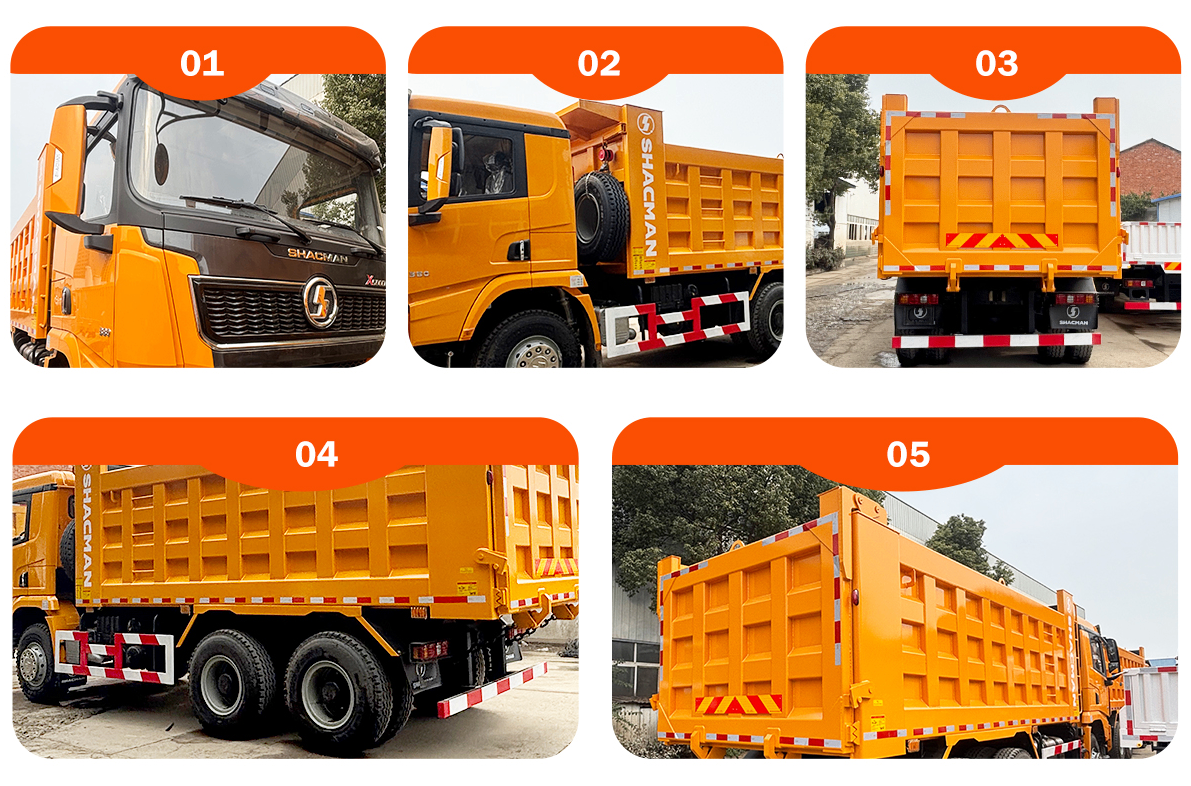

PRODUCT DETAILS

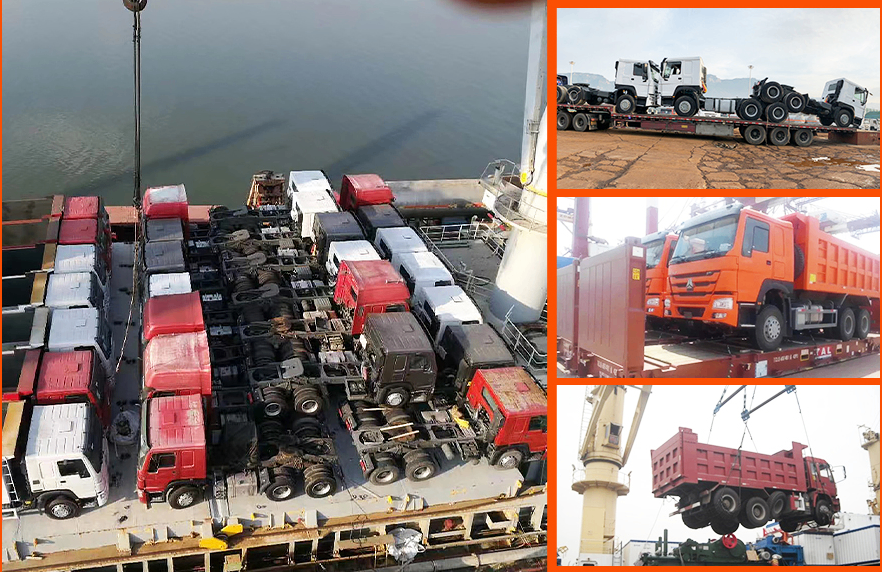

PACKAGING AND TRANSPORTATION
Wewillrecommendthemost suitable and cost-ef-fectivetransportationbased on quanti-methoddestination.tyandWewill take all necessary rein-forcement and protectivemeasures before transpor-tation to ensure that thegoods can be delivered tocustomers smoothly and ingood condition.
CERTIFICATE

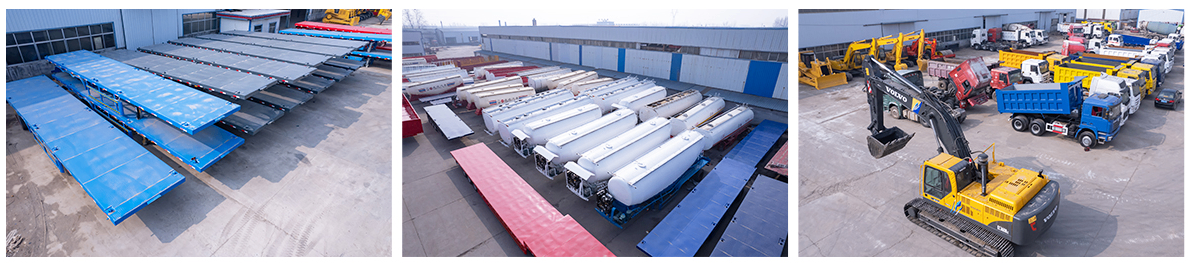

COMPANY PROFILE
Our company was founded in 2005 and is a leading enter-prise in the local truck and trailer industry. The companyintegrates production (high standard machinery and auto-mation equipment) and scientific research and develop-ment (3D sketch production, senior designers). We haveour own office and factory workshop, from research anddevelopment to production, from management to sales,to respond to customer needs faster, while also ensuringproduct quality and supply stability. Persist in providingcustomers with high-quality products, such as low chassistrailers, flatbed trailers, skeleton container semi trailers,tank truck trailers, bulk cement trailers, etc.
CUSTOMER VISITS

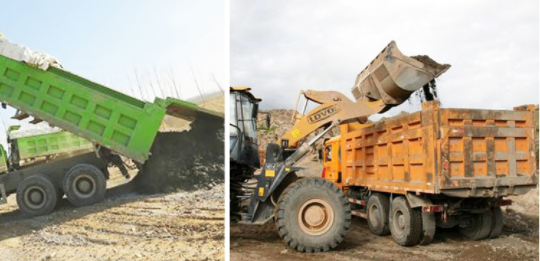

PRODUCT APPLICATION
CHENGDA
It has a wide range of applicationsin urban construction, mining, lo-gistics transportation, agriculturalproduction, municipal sanitationand other fields. It can adapt tovarious complex working condi-tions and environments, improv-ing work efficiency.
