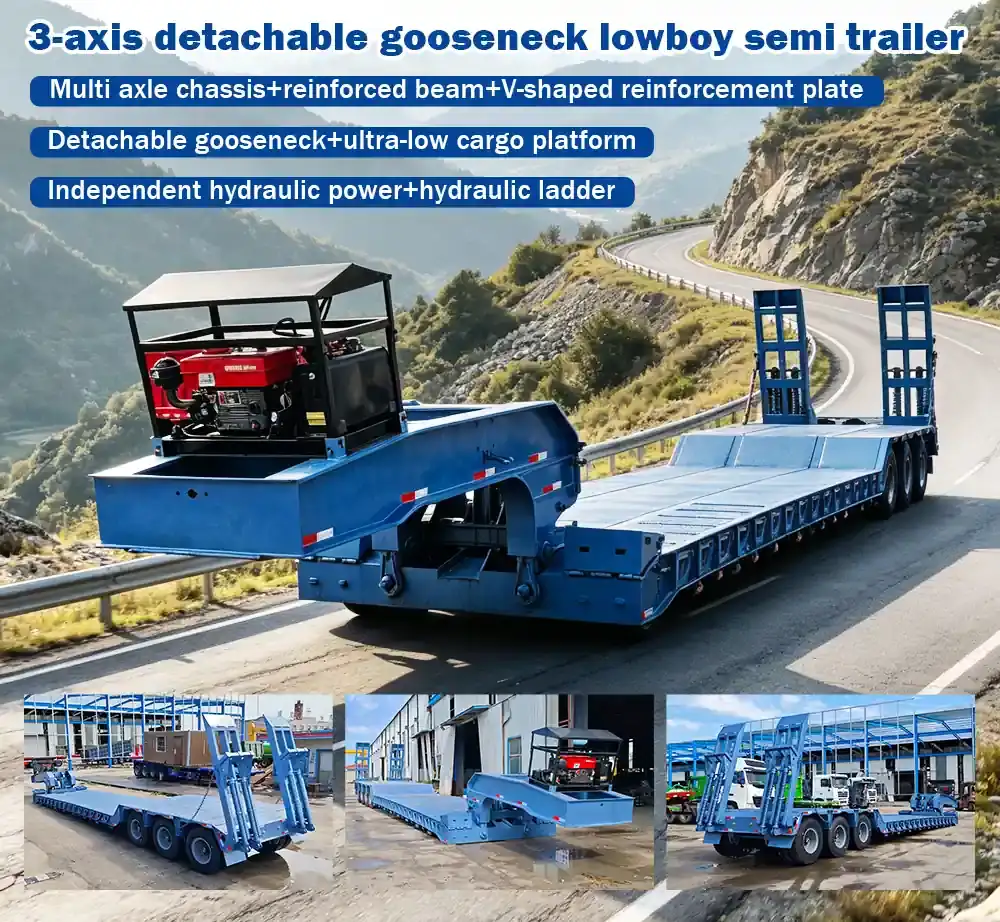

The 3 axle detachable gooseneck (RGN) trailer features a gooseneck section that can be detached from the main trailer body. This design allows for front-end loading and unloading of various types of machinery, greatly simplifying the process while enhancing stability and safety.
This rgn trailer is ideally suited for transporting large-scale engineering and mining equipment, such as excavators, bulldozers, loaders, and cranes.
The core advantage of this trailer lies in its detachable gooseneck structure, which enables the front section to be quickly removed. This allows equipment to drive directly from the ground onto the loading deck without the need for ramps, thereby reducing loading times, significantly improving safety for tracked machinery operations, and lowering labor and time costs.

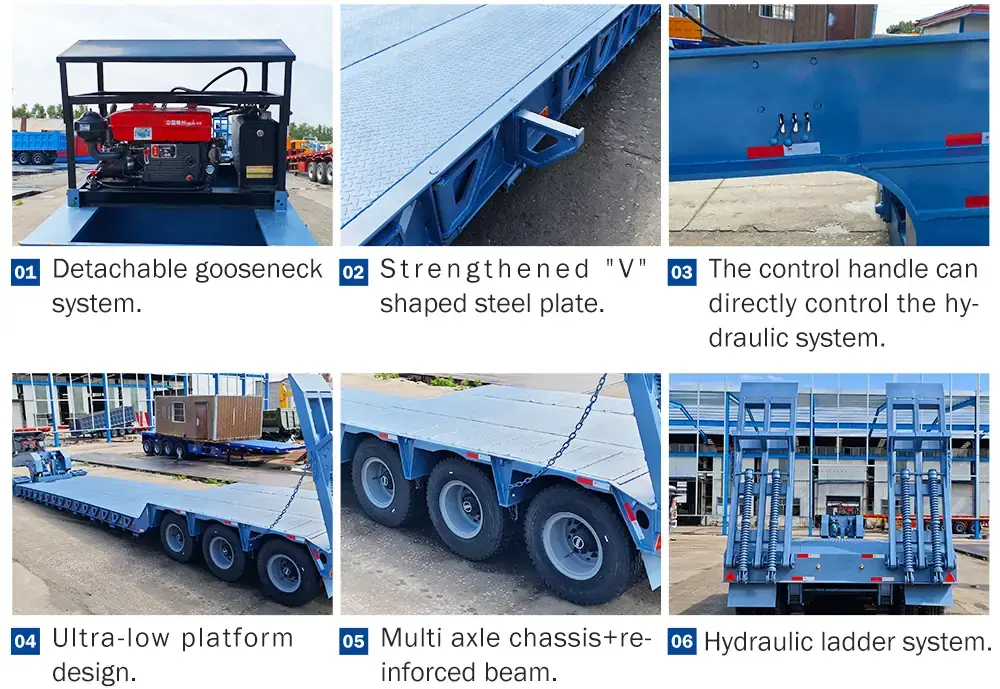

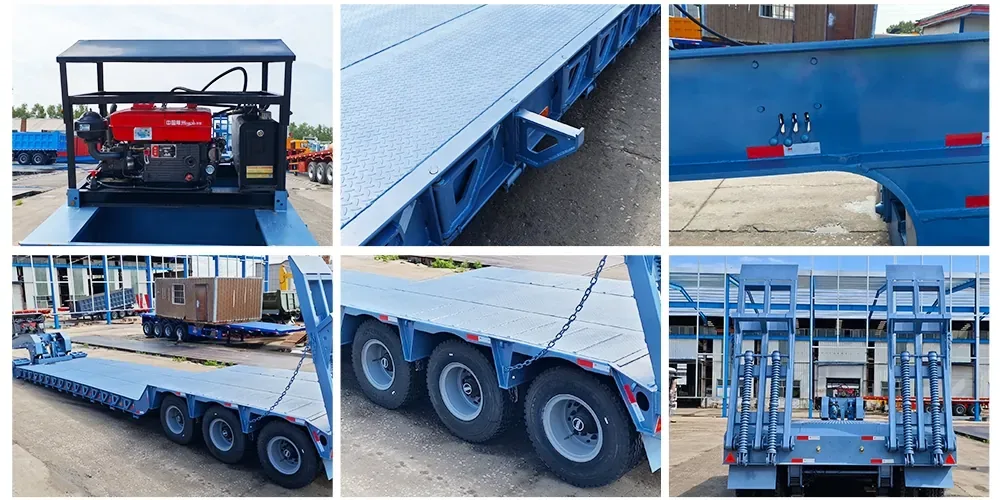

Features of the lowboy semi trailer
1. Low-profile design: Ultra-low deck height, ideal for transporting excavators, bulldozers, road rollers, and other heavy equipment; allows for loading and unloading without the need for special ramps.
2. High-strength frame: Welded from premium high-strength steel, the robust structure offers excellent torsional rigidity for the safe transport of heavy loads.
3. Tri-axle configuration: Features high-quality axles and suspension systems to ensure a smooth ride and reliable braking performance.
4. Expandable functionality: Optional hydraulic ramps, hydraulic gooseneck, or air suspension are available to meet diverse transport requirements.

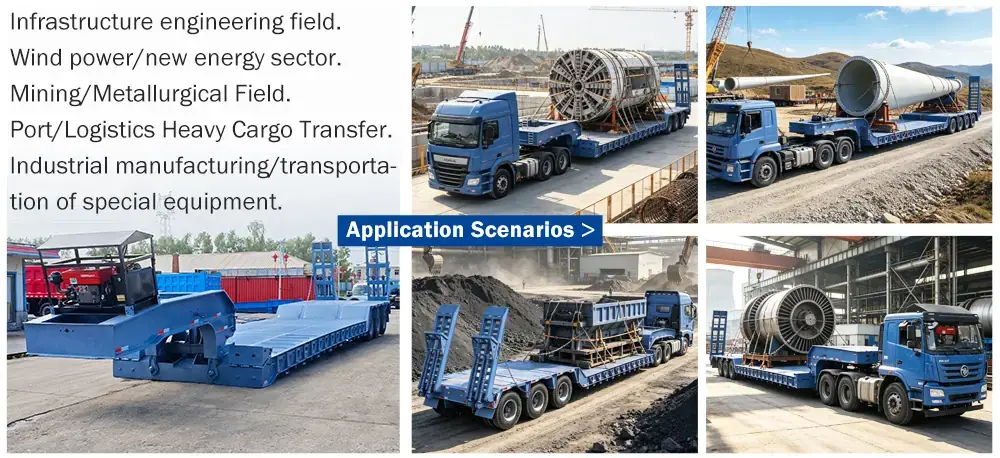

This 3-axle detachable gooseneck trailer is highly versatile, capable of carrying heavy equipment of various sizes and weights. It meets the needs of diverse scenarios, including site-to-site transfers, port pickups, and long-distance heavy-duty transport; its detachable design also facilitates easy maintenance and operation.
Specifications
3 Axle Low Bed Semi Trailer
Overall Dimension(Lx W x H)
13000*3000*1700
Platform size (Lx W x H)
13000*3000*1250
Function
Transport excavator
Tare Weight(KG)
6350
Loading Weight( KG)
50000
Total Weight(KG)
60000
Axle Brand
FUWA 13TON
Axle Number
Three
Wheelbase
6260+1310+1310
Suspension system
Leaf spring suspension
Steel Spring
10/10/10 leaf spring suspension
The material of Main beam
The height of the beam is 500 mm, upper plate is16mm,down plate is 18mm,middle plate is 10mm.
Tail lamp with turn signal, brake light & reflector, side lamp etc.
One set 6-core standard Cable.
Side Guard
According to customer’s requirement
Note: The specifications above reflect a standard lowboy semi trailer configuration. All parameters can be fully customized based on your payload and regional transport requirements.

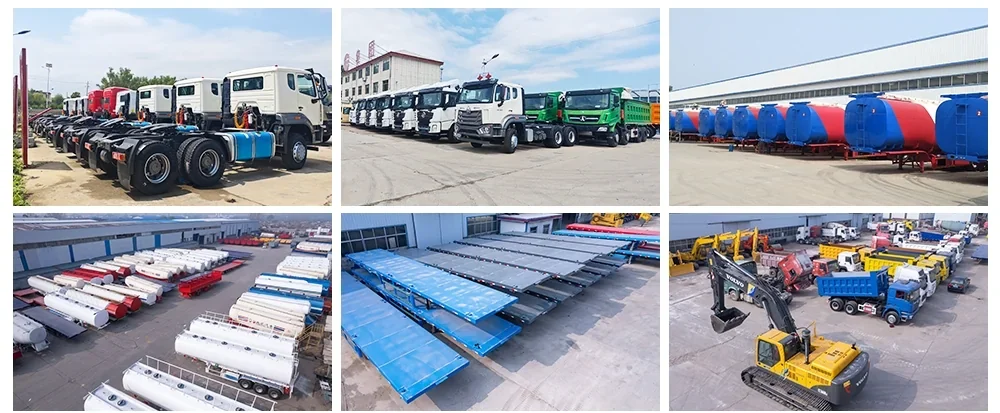

Qingdao Csd Auto And Equipment Co., Ltd. established in 2005 is one of the qualified manufacturers of various trailers. Integrated production, scientific research & development, and professional sales teams, all those advantages can provide the full service of trailers, semi-trailers, tractor heads, dump trucks, engineering machinery, and trailer parts, our company is a leading provider in this industry, with annual export value reaching above 50million dollars and revenue almost 600 million yuan RMB. Besides mature after-sale systems, we can meet the different needs of customers at both homes.

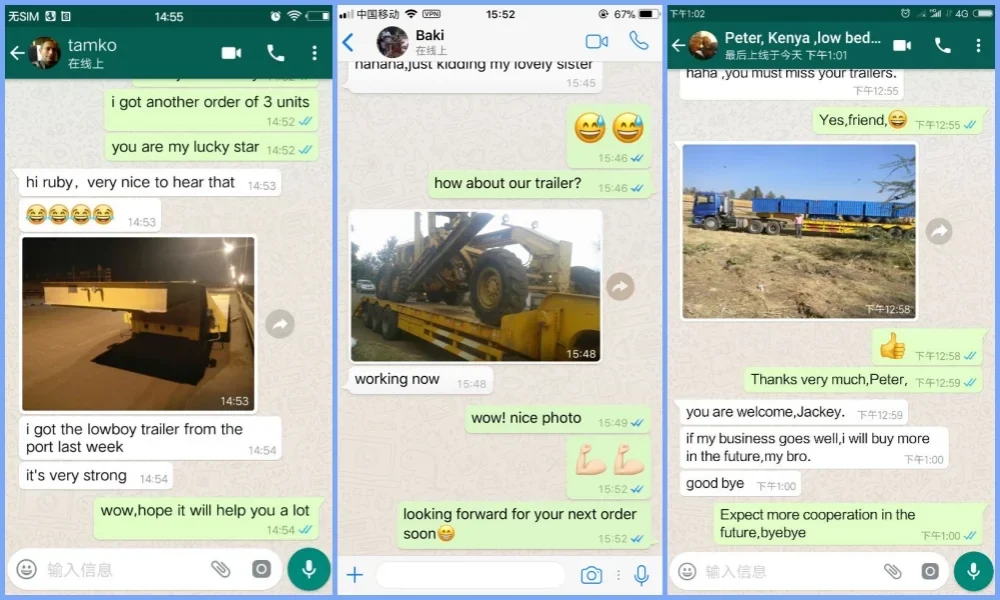

What Our Customers Say
