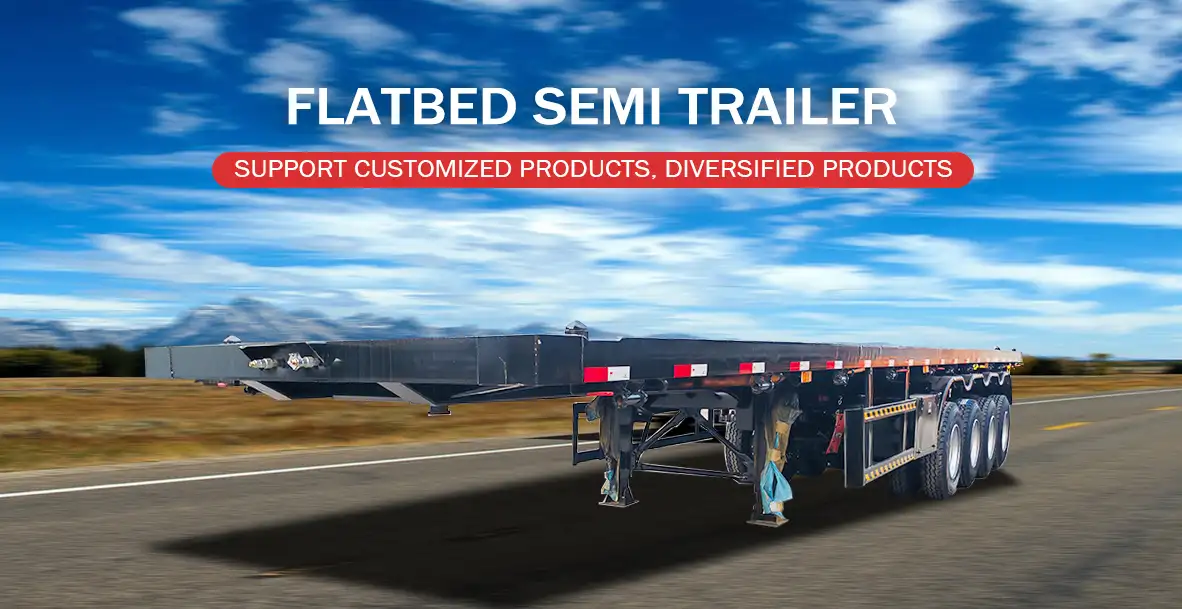

A 4 Axle Flatbed Semi Trailer is a heavy-duty transport semi-trailer equipped with four axles, designed for heavy loads and long-distance transportation. It features a high-strength steel frame structure, excellent load-bearing performance, and high structural stability.
This type of trailer is widely used to transport containers, steel, engineering machinery, large equipment, and other heavy cargoes. With a flat platform design, it allows flexible loading and unloading by forklift, crane, and other equipment.
Equipped with reliable axles, braking system, suspension, and high-quality brand accessories, it ensures safe and stable operation under complex road conditions. It is an ideal transport solution for logistics, ports, construction, and other heavy-duty transportation industries.

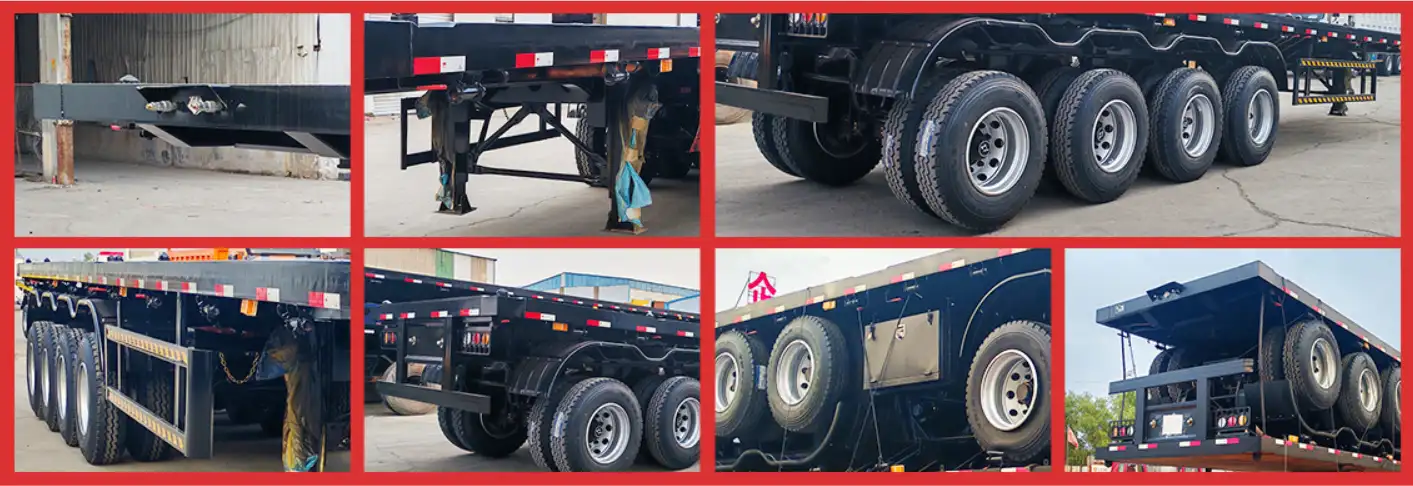

PRODUCTDETAILS
Ready to enhance your transport efficiency?
Parameters
| Manufacture | Chengda | ||
|---|---|---|---|
| Model | 20 Feet | 40 Feet | 45 Feet |
| Main Beam Material | T700/Q345 Steel | ||
| Main Beam | Upper Plate : 12 mm | Upper Plate : 16 mm | Upper Plate :16 mm |
| Lower Plate : 14 mm | Lower Plate : 18 mm | Lower Plate : 18 mm | |
| Middle Plate : 6 mm | Middle Plate : 10 mm | Middle Plate : 10 mm | |
| Height : 500 mm | |||
| Product size(mm) | 7000x2500x1570 | 12400x2500x 1570 | 13950x2500x 1600 |
| Max Payload | 20 - 60 T | 30 - 80 T | 30 - 80 T |
| Twist Lock | 4 Sets | 12 Sets | 12 Sets |
| Axle | 2/3/4 Axles x 13 T FUWA/BPW/Other | ||
| Suspension | Leaf spring suspension/air suspension | ||
| King Pin | 2"(50mm) or 3.5"(90mm) JOST | ||
| Landing Gear | 28 Tons Two Speed,JOST | ||
| Brake System | Dual line braking system | ||
| Electrical System | 24V, 7 core socket, lights according to European standards | ||
| Tire | 12R22.5 (8/12 Pieces) | ||
| Color | Customers Optional | ||
| *Above information is the standard Spec. if you need to change the Spec or know more details, please let us know. | |||

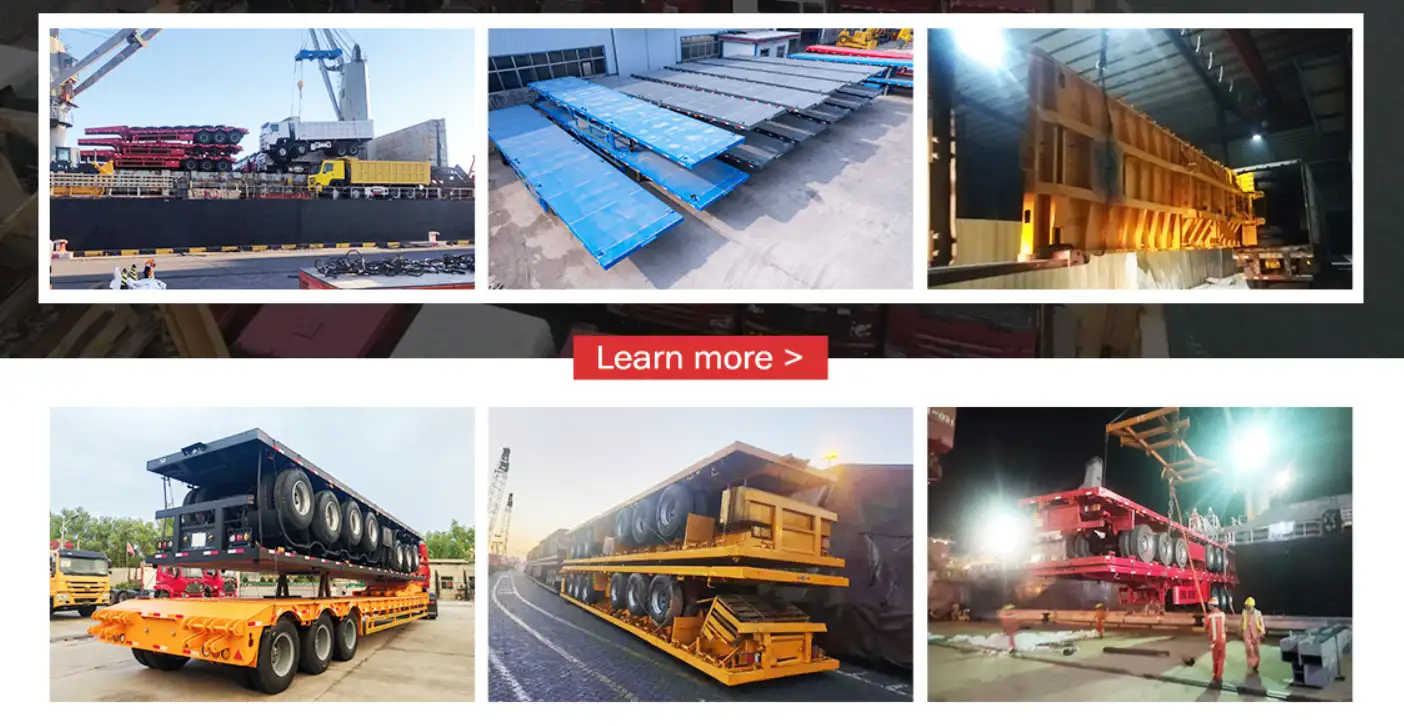

PACKAGING AND TRANSPORTATION
We will recommend the most suitable and cost-effective transportation method based on quantity and destination. In addition, we will take all necessary reinforcement and protective measures before transportation to ensure that the goods can be delivered to customers smoothly and in good condition.
Ready to enhance your transport efficiency?

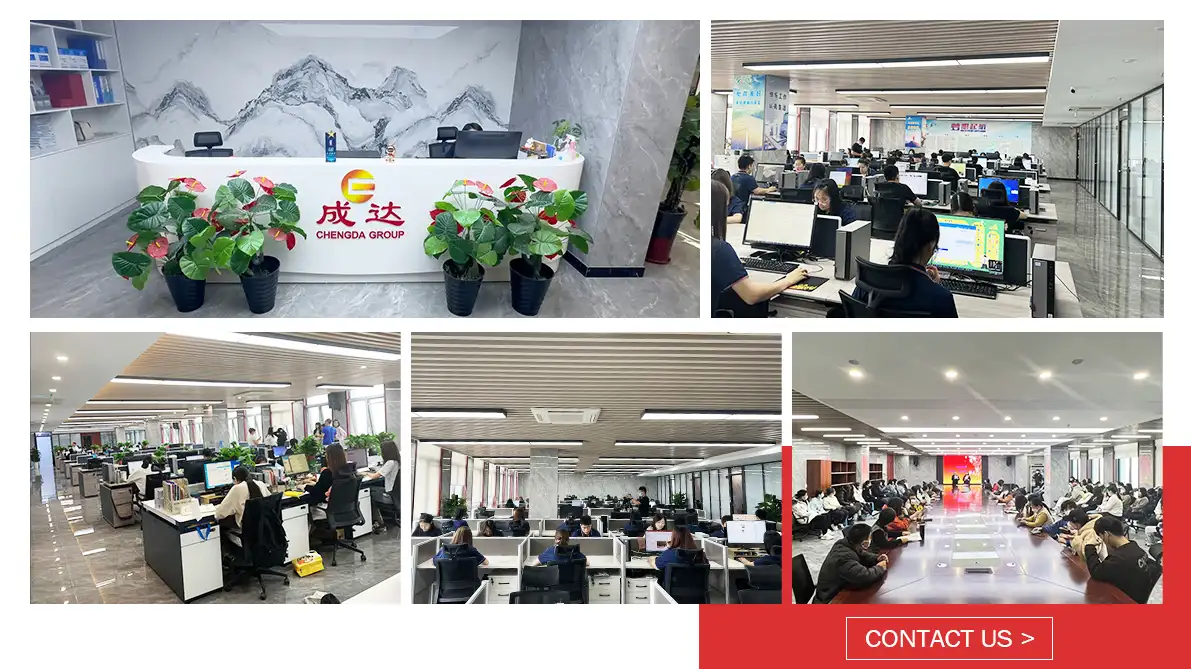

COMPANYPROFILE
Our company was founded in 2005 and is a leading enterprise in the local truck and trailer industry. The company integrates production (high-standard machinery and automation equipment) and scientific research and development (3D sketch production, senior designers).
We have our own offices and factory workshops, covering all aspects from R&D to production, from management to sales, to respond to customer needs more quickly while ensuring product quality and supply stability. We are committed to providing customers with high-quality products, such as low-chassis semi-trailers, flatbed semi-trailers, skeleton container semi-trailers, tank semi-trailers, and bulk cement semi-trailers.
